1.0C Series Push-Pull Horizontal-stick Top Contact Type-东莞市精莱电子有限公司

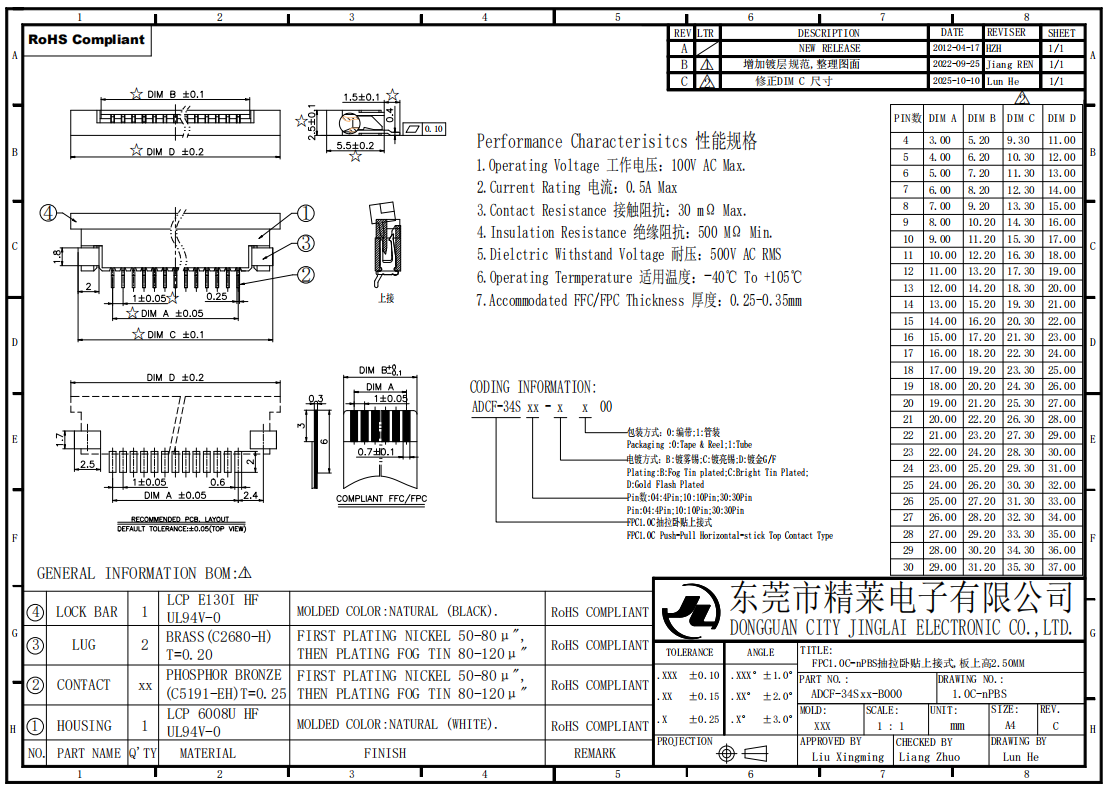

1.0C Series Push-Pull Horizontal-stick Top Contact Type

Note:
1.Circuits: 4~30

2.Current rating: 0.5A,AC,DC

3.Withstand voltage: 500V AC/min

4.Working Temperature: -40℃~+105℃

5.Insulation resistance: ≧100MΩ

6.Contact resistance: ≦30mΩ

7.Contact resistance: Single Contact
