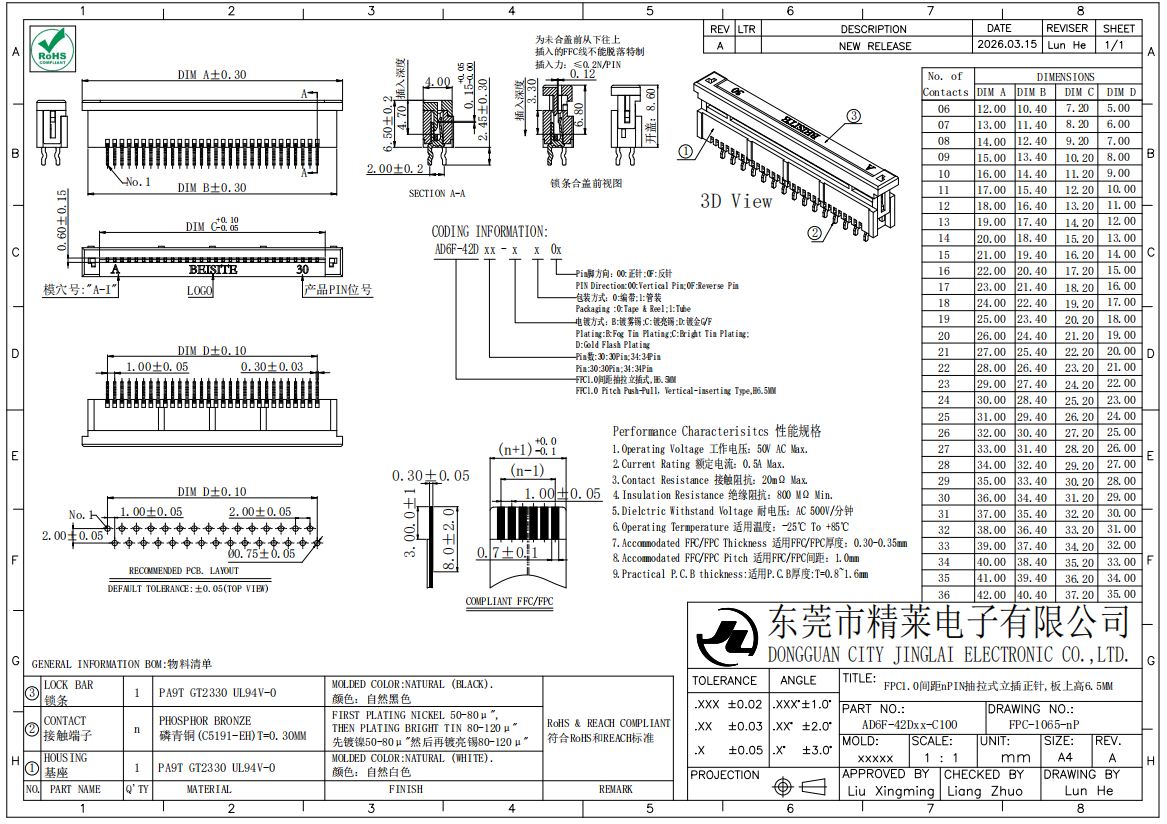

Performance Characterisitcs 性能规格

1.0perating Voltage 工作电压: 50V AC Max.

2.Current Rating 额定电流:0.5A Max.

3.Contact Resistance 接触阻抗:20MΩ Max.

4.Insulation Resistance 绝缘阻抗:800 MΩ Min.

5.Dielctric withstand Voltage 耐电压:AC 500V/分钟

6.0perating Termperature 适用温度:-25℃ To +85℃

7.Accommodated FFC/FPC Thickness 适用FFC/FPC厚度:0. 30-0. 35mm

8. Accommodated FFC/FPC Pitch 适用FFC/FPC间距:1.0mm

9.Practical P.c.B thickness:适用P.C. B厚度:T=0.8~1.6mm
